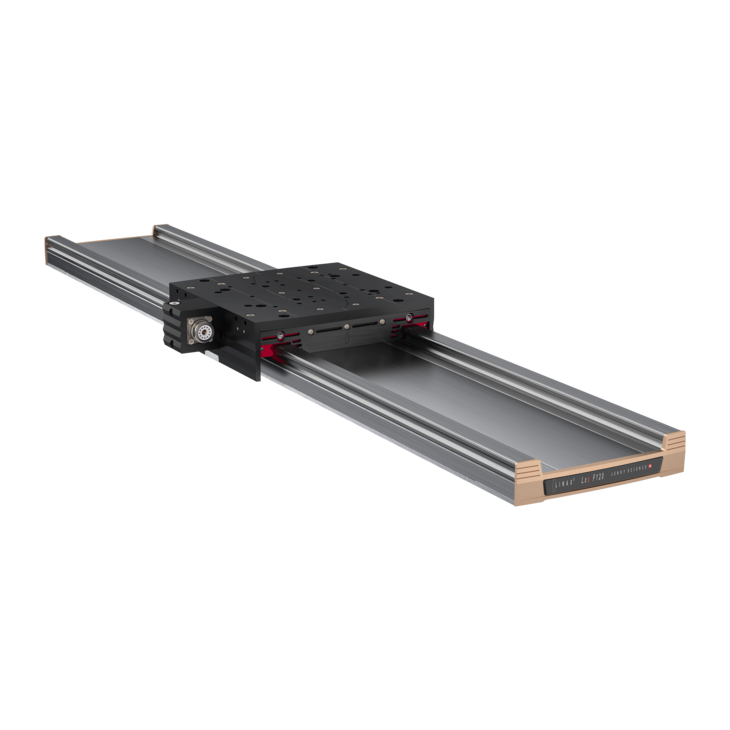

linax® lxs F120 LINEAR MOTOR AXIS
Lxs = shuttle

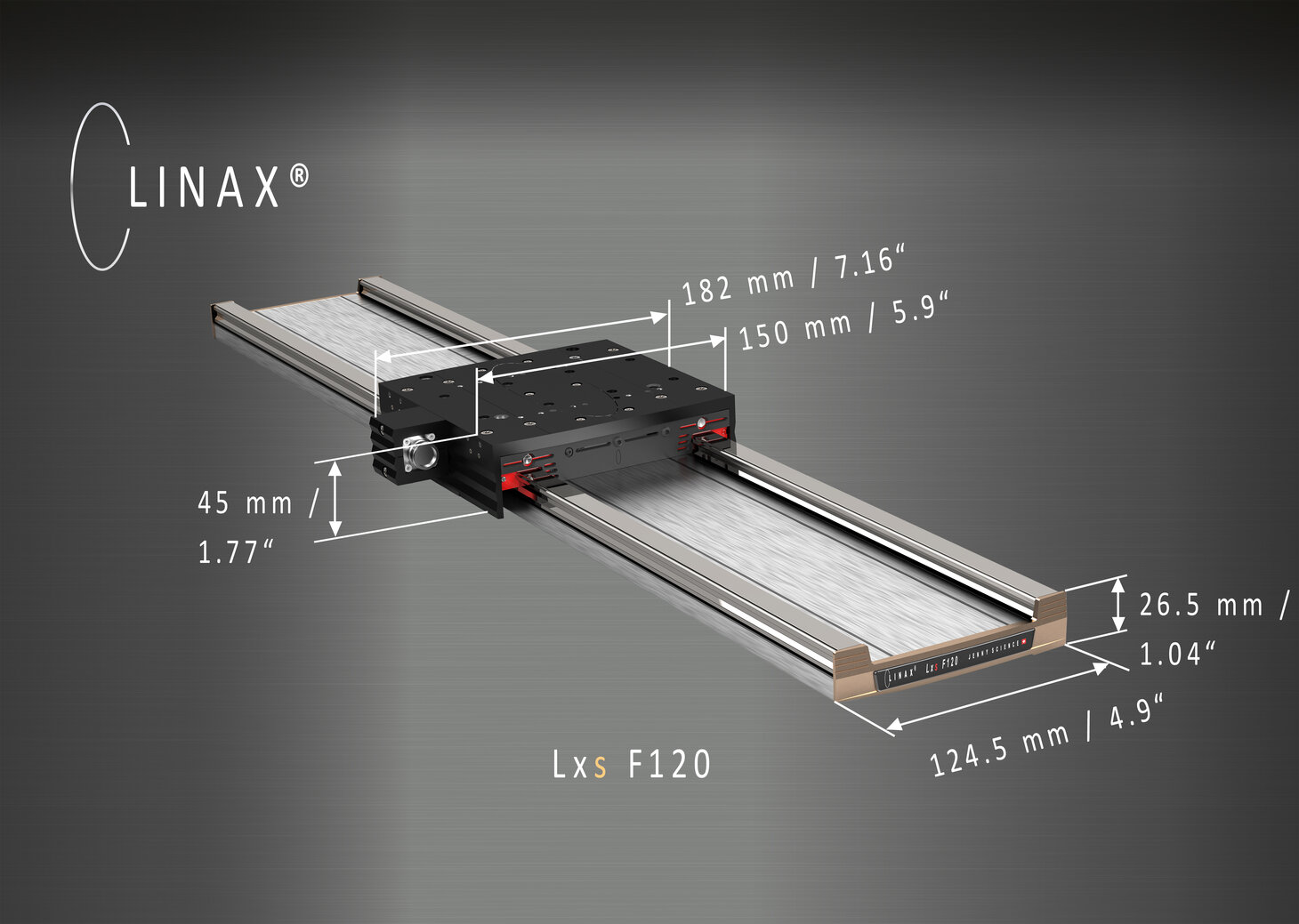

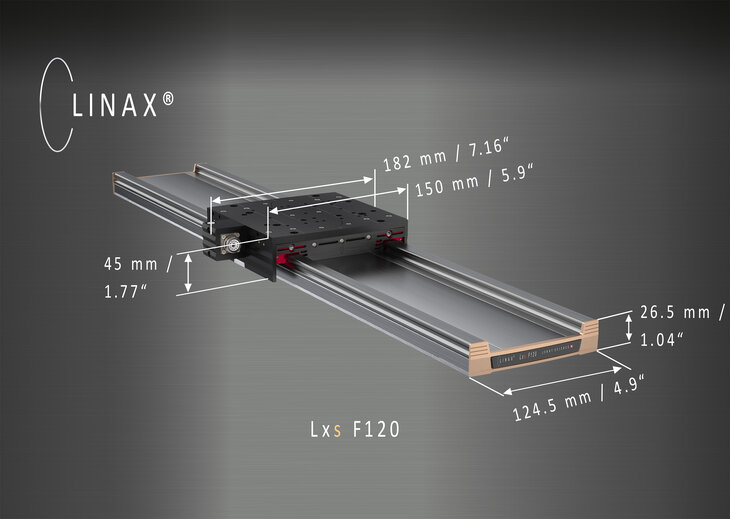

The Lxs Shuttle linear motor stages, designed for travel distances up to 1'600 mm, feature a "recessed" linear motor design and a height of only 45mm for the Lxs F120 model. A new, more potent motor is incorporated, boasting a nominal force of 120N and peak performances up to 300N. More robust guides facilitate the absorption of high force moments from transverse cantilever axes. The innovative single-cable solution simplifies installation and maintenance, while the absolute measurement system, which no longer requires a reference run, makes operation more efficient.
All the LINAX® Lxs linear motor stage can be controlled with the latest, more powerful XENAX® Xvi 75V8S servo controller.
| LINAX® | Force Fn/Fp [N] (Ibf) | Weight Carriage [g] (Ibs) |
Position Accuracy (µm) | ||
| Lxs | 120/300 (27.0/67.4) |
2'300 (5.07) |
optical 0.1 +/- 0.5 |
optical 1µm +/- 1.5 |
magnetic 1 +/- 2 |
| LINAX® | Stroke [mm] (in) | L Install [mm] (in) |
Weight total [g] (Ibs) |
Art. No. optical measuring 0.1 μm | Art. No. optical measuring 1 μm | Art. No. magnetic measuring 1 μm |
| Lxs 80F1201) | 80 (3.15) |
243 (9.57) |
4'700 (10.36) |
115.45.02 | 115.36.02 | 115.35.02 |
| Lxs 200F1201) | 200 (7.87) |
363 (14.29) |
5'900 (13.00) |
115.45.08 | 115.36.08 | 115.35.08 |
| Lxs 400F120 | 400 (15.75) |
563 (22.17) |
7'800 (17.20) |
115.45.18 | 115.36.18 | 115.35.18 |
| Lxs 520F120 | 520 (20.47) |
683 (26.89) |
9'000 (19.84) |
115.45.24 | 115.36.24 | 115.35.24 |
| Lxs 600F120 | 600 (23.62) |
763 (30.04) |
9'800 (21.61) |
115.45.28 | 115.36.28 | 115.35.28 |
| Lxs 800F120 | 800 (31.50) |
963 (37.91) |
11'800 (26.01) |
115.45.38 | 115.36.38 | 115.35.38 |
| Lxs 1000F120 | 1'000 (39.37) |
1'163 (45.79) |
13'700 (30.20) |
115.45.48 | 115.36.48 | 115.35.48 |
| Lxs 1200F120 | 1'200 (47.24) |
1'363 (53.66) |
15'700 (34.61) |
115.45.58 | 115.36.58 | 115.35.58 |
| Lxs 1600F120 | 1'600 (62.99) |
1'763 (69.41) |
19'600 (43.21) |
N/A | N/A | 115.35.78 |
| Lxs 2000F120 | 2'000 (78.74) | 2'163 (85.16) |
23'500 (51.80) |
N/A | N/A | 115.35.88 |
1) available with weight compensation up to 12 kg
