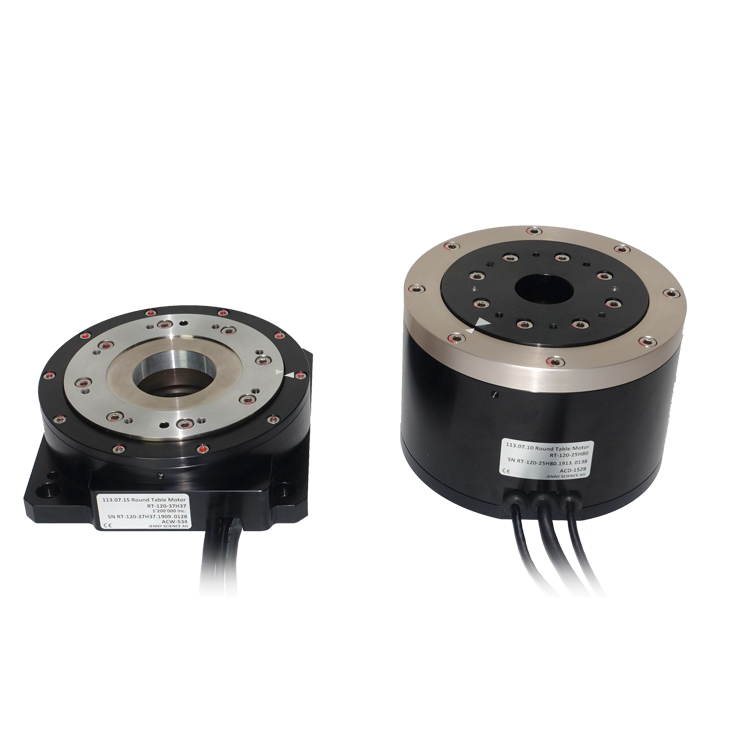

Round table rt
The direct drive is an ironless torque motor without cogging forces. The high resolution measuring encoder is integrated and has a zero-pulse per rotation for the reference. The RT hollow shaft motors can be directly controlled with a XENAX® Xvi servo controller.
One motor connecting cable and one cable fan out (encoder and hall cable) of each 3.0m is included as a standard, mounted with a 3 pole Wago 3.5mm and 15 pole HD connector.
| Type | Resolution [inc/rev] |
Mn/Mpeak [Nm] |
n-max@48V DC [rpm] | Flange, Hollow shaft |
Art. No. |
|---|---|---|---|---|---|
| RT-120-25H80 | 229'440 | 1.8 / 6.5 | 955 | 120 x 80 mm / Ø 25 mm |
113.07.12 |
| RT-120-37H37 | 314'720 | 0.6 / 2.1 | 400 | 120 x 37 mm / Ø 37 mm |
113.07.19 |
