Linax® lxc Linear motor axis
Lxc = compact

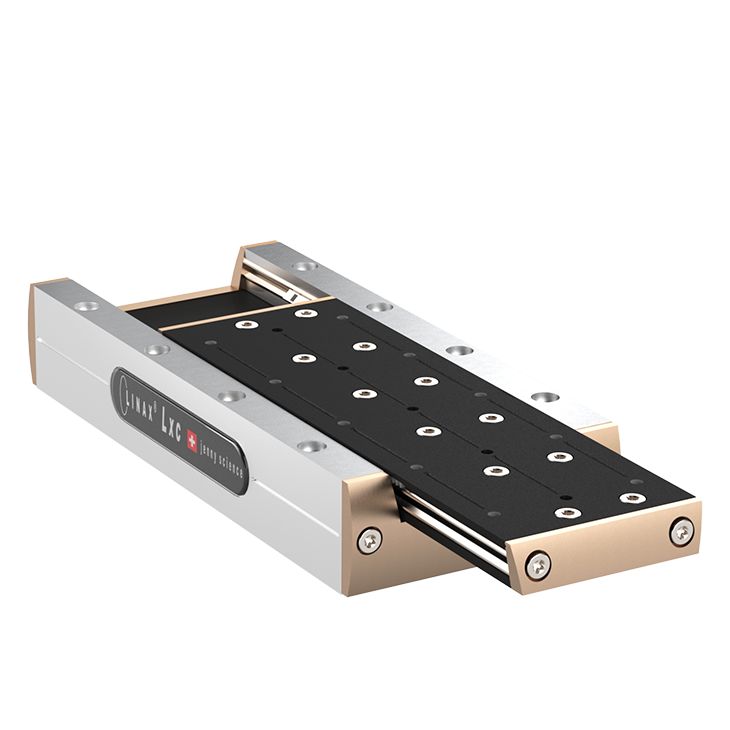

The compact LINAX® Lxc axes are based on a patented monoblock design. The coils are permanently integrated into the monoblock, while only the magnets together with the glass scale move. This design completely eliminates moving motor cables and cable carriers for single axes. The result is a space saving, low wear and maintenance free linear axis with high reliability and long service life.
The LINAX® Lxc is now equipped with an innovative single cable solution. Encoder signals, the three phases of the linear motor and the communication interface between the LINAX® Lxc and the XENAX® servo controller are combined in one flexible connection cable. This significantly reduces wiring effort, simplifies installation and increases operational reliability. The standardized M16 connection ensures a uniform interface and facilitates assembly, service and spare parts management.
Technical features
- Patented monoblock design
- Single cable solution with M16 standard connection for motor, encoder and communication
- Cage guided centering with crossed roller cage standard
→ prevents cage migration and increases reliability and service life - Glass scale with 1 µm resolution standard accuracy ± 2 µm
- Optional 100 nm resolution for high precision applications
- Optional vertical weight compensation for vertical mounting orientations

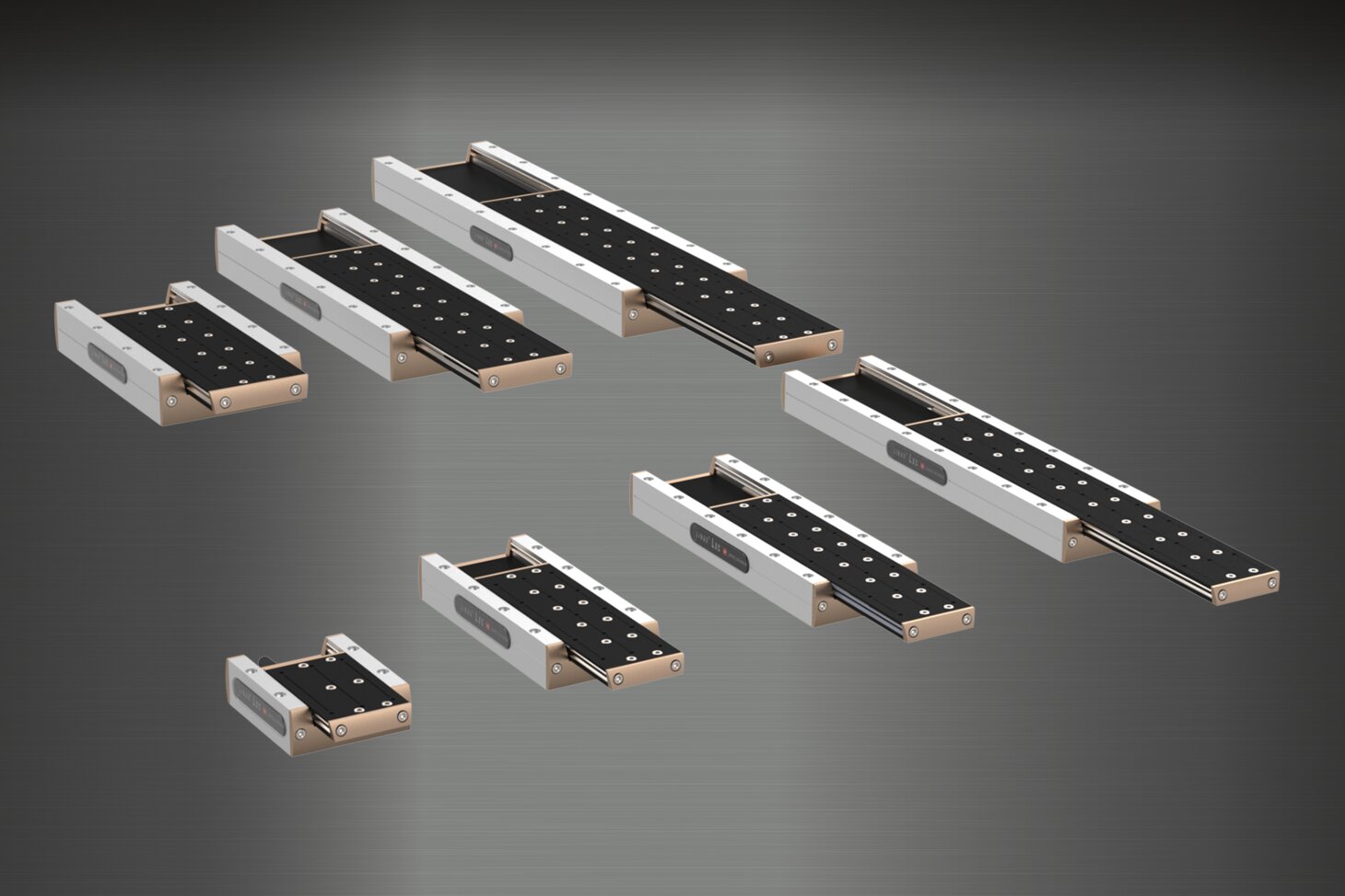

| LINAX® | Bidirectional Repeatability (µm) | |
| Lxc | optical 0.1 +/- 0.5 |
optical 1 |
| LINAX® | Stroke [mm] (in) |
L Install. [mm] (in) | Force Fn/Fp [N] (lbf) |
Weight Carriage/Total (+Geko) [g] (lbs) | Art. No. optical measuring 0.1 μm | Art. No. optical measuring 1 μm |
|---|---|---|---|---|---|---|
| Lxc 44F081) | 44 (1.73) | 78 (3.07) | 08/24 (1.79/5.39) |
130/350 (+90) (0.28/0.77 (+0.20)) | 115.00.20 | 115.00.10 |
| Lxc 85F101) | 85 (3.34) | 144 (5.66) | 10/30 (2.24/6.74) |
230/650 (+180) (0.50/1.43 (+0.40)) |
115.01.20 | 115.01.00 |
| Lxc 135F10 | 135 (5.31) | 194 (7.63) | 10/30 (2.24/6.74) |
320/880 (0.70/1.94) |
115.02.20 | 115.02.00 |
| Lxc 230F10 | 230 (9.05) | 290 (11.41) | 10/30 (2.24/674) |
450/1'200 (0.99/2.64) |
115.03.20 | 115.03.00 |
| Lxc 80F401) | 80 (3.14) | 169 (6.65) | 40/114 (8.99/25.62) |
520/1'470 (+335) (1.14/3.24 (+0.74)) |
115.10.20 | 115.10.00 |
| Lxc 176F401) | 176 (6.92) | 265 (10.43) | 40/114 (8.99/25.62) |
750/2'150 (+530) (1.65/4.73 (+1.17)) |
115.12.20 | 115.12.00 |
| Lxc 272F40 | 272 (10.70) | 361 (14.21) | 40/114 (8.99/25.62) |
1'050/2'800 (2.31/6.17) |
115.14.20 | 115.14.00 |
1) available with weight compensation up to 3kg / 6kg
Download files LINAX® Lxc linear motor stage
| Datasheet_LINAX_Lxx_E.pdf (PDF) |
| CAD-FILES_STEP_LINAX®_Lxc.zip – Login |
| ACCESSORIES_CAD-FILES_STEP_LINAX®_Lxc.zip – Login |
