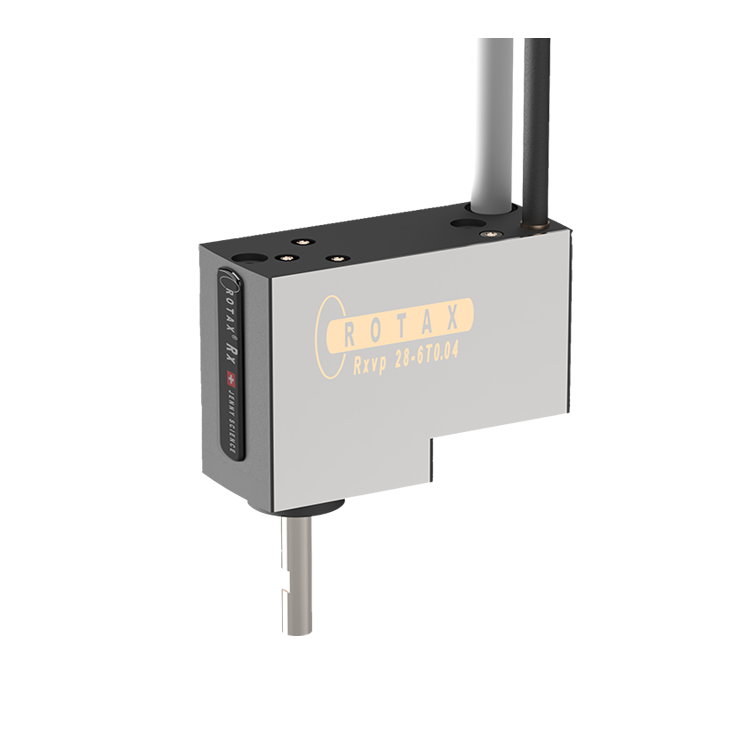

rotax® Rxvp 28                 ROTARY MOTOR AXIS

Rxvp = vacuum pressure
The ultra-compact ROTAX® rotary motor axis with a vacuum gripper picks up parts within a typical weight range of 1 mg to 500 g. Many commercially available vacuum grippers can be attached to the standardized M5 threaded hole. The ROTAX® rotary motor axes can also be directly mounted to the ELAX® linear motor slides or the LINAX® linear motor axes.

The highly precise rotary motor axis rotates endlessly 360° with a resolution of 64,000 increments per revolution. They can be arranged next to each other with a spacing of only 30 mm. When placed opposite each other, the minimum distance between ROTAX® shafts is also only 30 mm. This saves space, and the system becomes more compact.

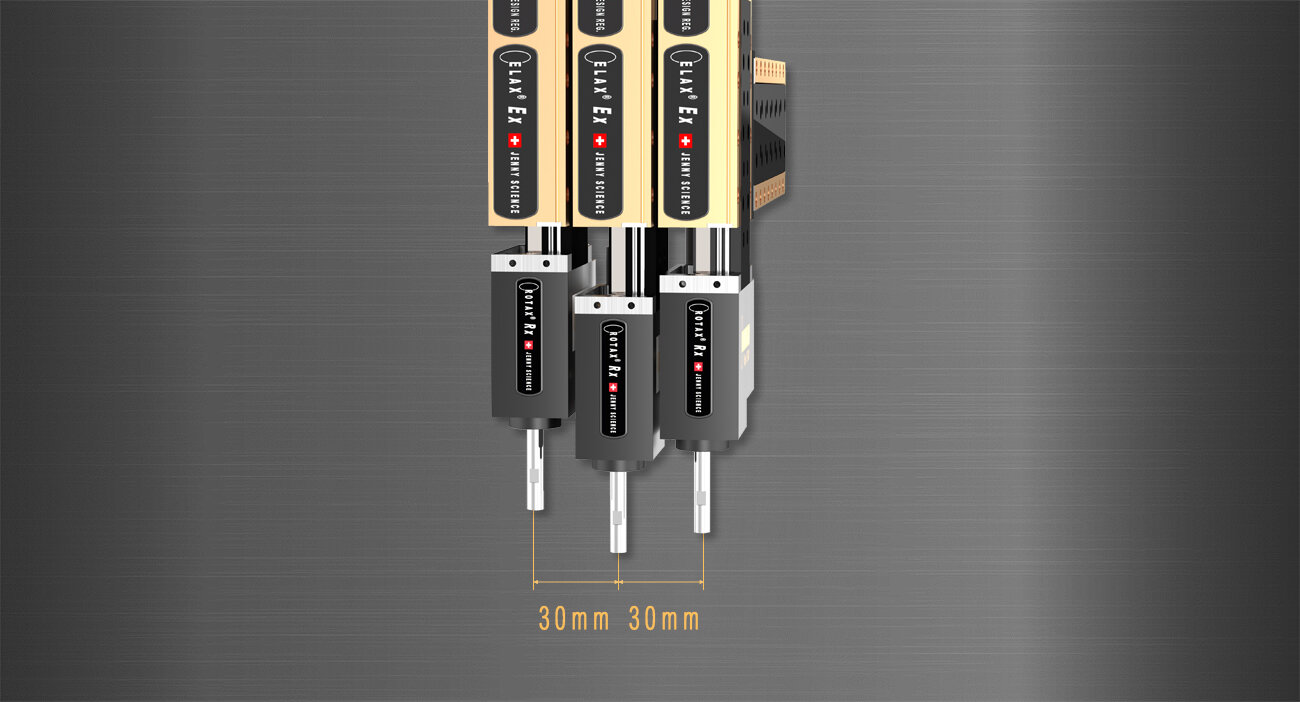

Ultra-compact grid arrangement of only 30mm.
Ultra-compact grid arrangement of only 30mm.
ROTAX® Position Accuracy (arc-sec)
Rxvp Unidirect. Bidirect
  +/- 12 +/- 20



ROTAX® Vmax [rmp] Torque Mn/Mp
[Nm] (lbf in)
Encoder
incremental
Wiring
Rxvp
28-6T0.04
1500 40/110 (0.35/0.97) 64000 Inc/rev
360° endless rot.
One cable connection



ROTAX® Shaft
[mm] (in)
Length
[mm] (in)
Dimensions
W x H
[mm] (in)
Weight Total Shaft 15/30mm
(0.59/1.18in)
[g] (lbs)
Art. No.
Rxvp
28-6T0.04
ø6 x 15 / ø6 x 30
(ø0.24 x 0.59 / ø0.24 x 1.18)
68 27.5 x 56.3 325/330 120.00.00
Rxvp
28-6T0.041)
ø6 x 15 / ø6 x 30
(ø0.24 x 0.59 / ø0.24 x 1.18)
97.5 27.5 x 56.3 345/350 120.01.00

1) längere Version zum Anbau an eine ELAX® Ex F20 Achse mit Gewichtskompensation
