Linax® linear motor Axis
Lxe = exclusive

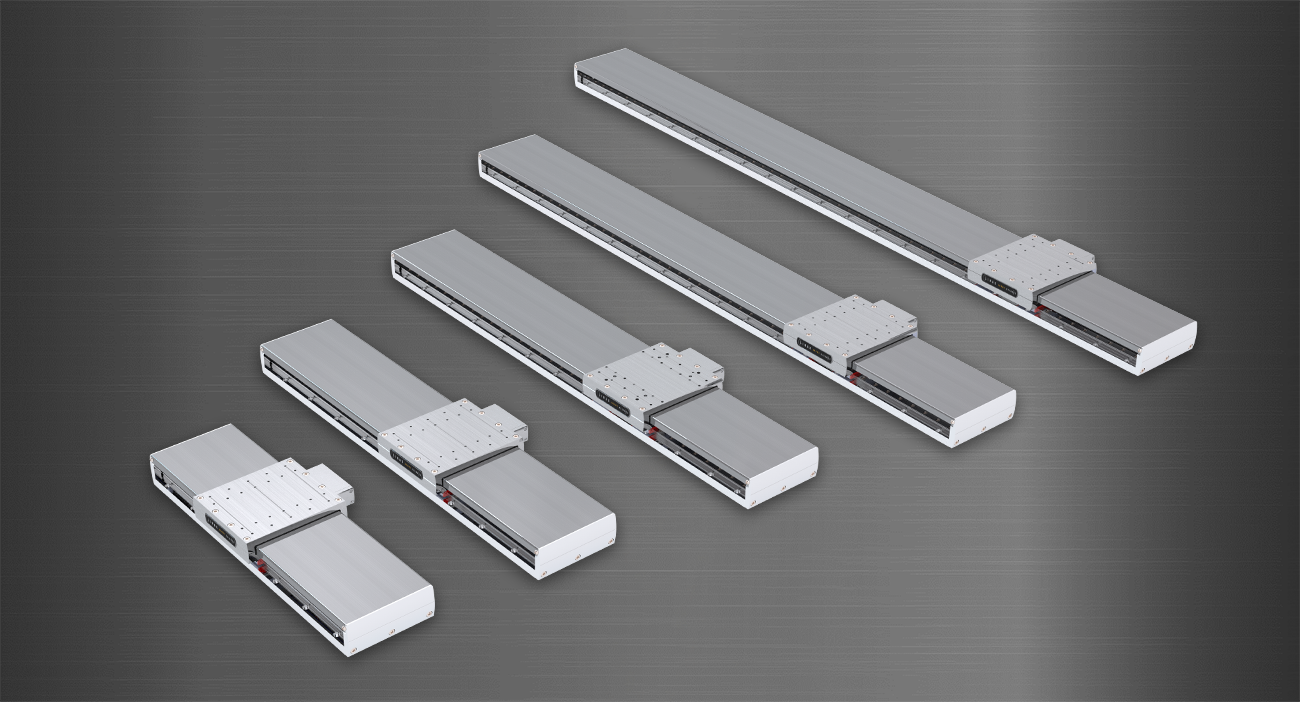

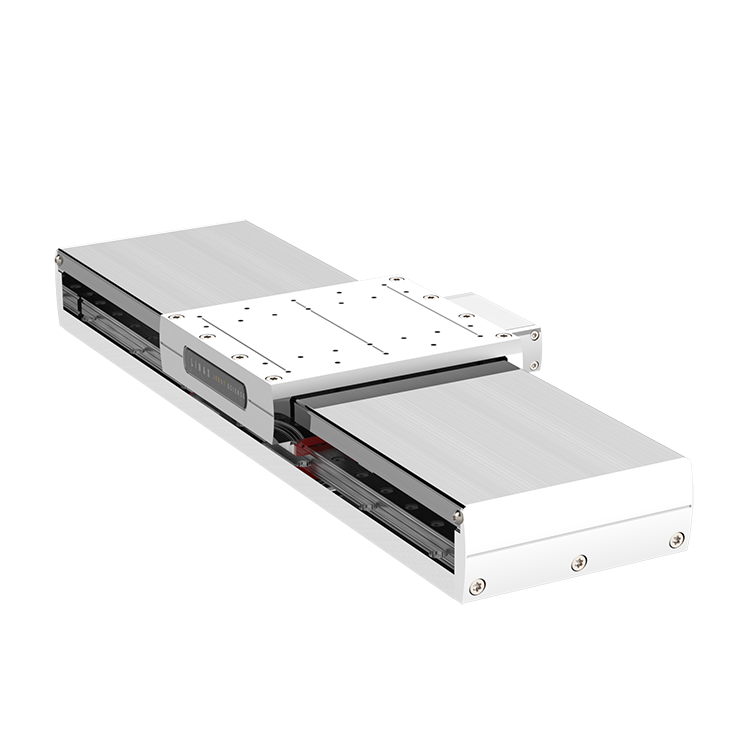

The LINAX® Lxe linear motors have a special cover. This results in a flat and elegant exterior geometry for easy cleaning. Additional carriage sliders on the same ground plate allow highly integrated machine solutions. Available Lxe stroke lengths begin at 250 mm up to 1000 mm.
| LINAX® | Force Fn/Fp [N] (lbf) | Position Accuracy | |
| Lxe | 40/114 (8.99/25.62) | optical 100nm +/- 500nm |
optical 1µm |
| LINAX® | Stroke [mm] (in) |
L Install. [mm] (in) | Weight Carriage/Total [g] (lbs) | Art. No. optical measuring 100nm |
Art. No. optical measuring 1μm |
| Lxe 250F40 | 250 (9.84) | 386 (15.19) | 980/3'080 (2.16/6.79) | 115.20.20 | 115.20.00 |
| Lxe 400F40 | 400 (15.74) | 536 (21.10) | 980/3'850 (2.16/8.48) | 115.22.20 | 115.22.00 |
| Lxe 550F40 | 550 (21.65) | 686 (27.00) | 980/4'620 (2.16/10.18) | 115.24.20 | 115.24.00 |
| Lxe 800F40 | 800 (31.49) | 936 (36.85) | 980/5'900 (2.16/13.00) | 115.26.20 | 115.26.00 |
| Lxe 1000F40 | 1000 (39.37) | 1136 (44.72) | 980/6'930 (2.16/15.27) | 115.28.20 | 115.28.00 |
Download files LINAX® Lxe Linearmotor
| DATASHEET_LINAX®_Lxx.pdf (PDF) |
| CAD-FILES_STEP_LINAX®_Lxe.zip – Login |
