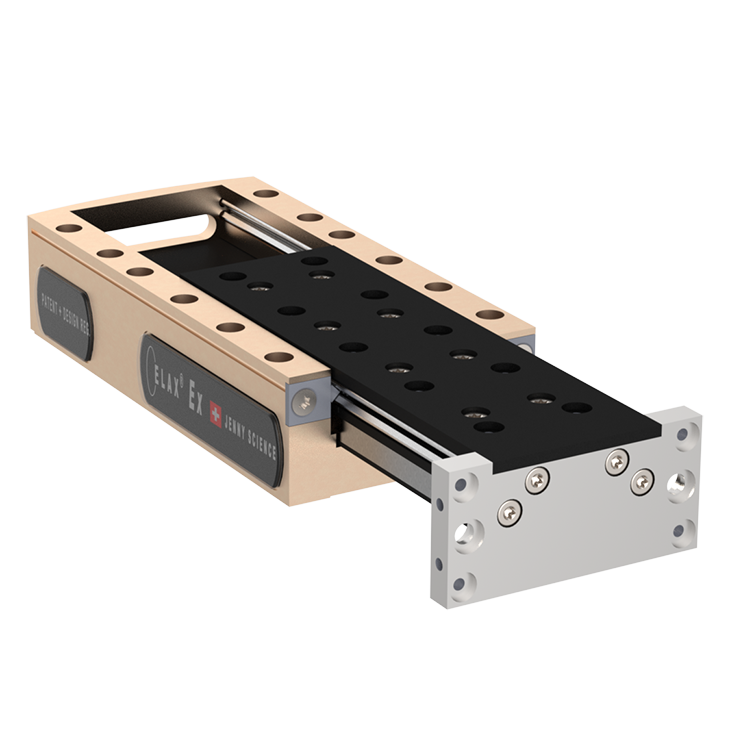

elax® LINEAR MOTOR slide
Ex
ELAX® is the evolutionary step of the widespread pneumatic slides. The great accomplishment is the patented compact integration of the linear motor in the slider case, resulting in a force/volume ratio which has hitherto never been achieved. A further essential key factor for future oriented automation solutions with ELAX® linear slide are the components with direct screw connections, the flexible one-cable connection and the function “force calibration” with which you can control, limit and monitor forces – no need for an additional force sensor.
| ELAX® | Force Fn/Fp [N] (Ibf) | Position Accuracy (µm) |
| Ex | 20/60 (4.49/13.48) | +/- 5 |

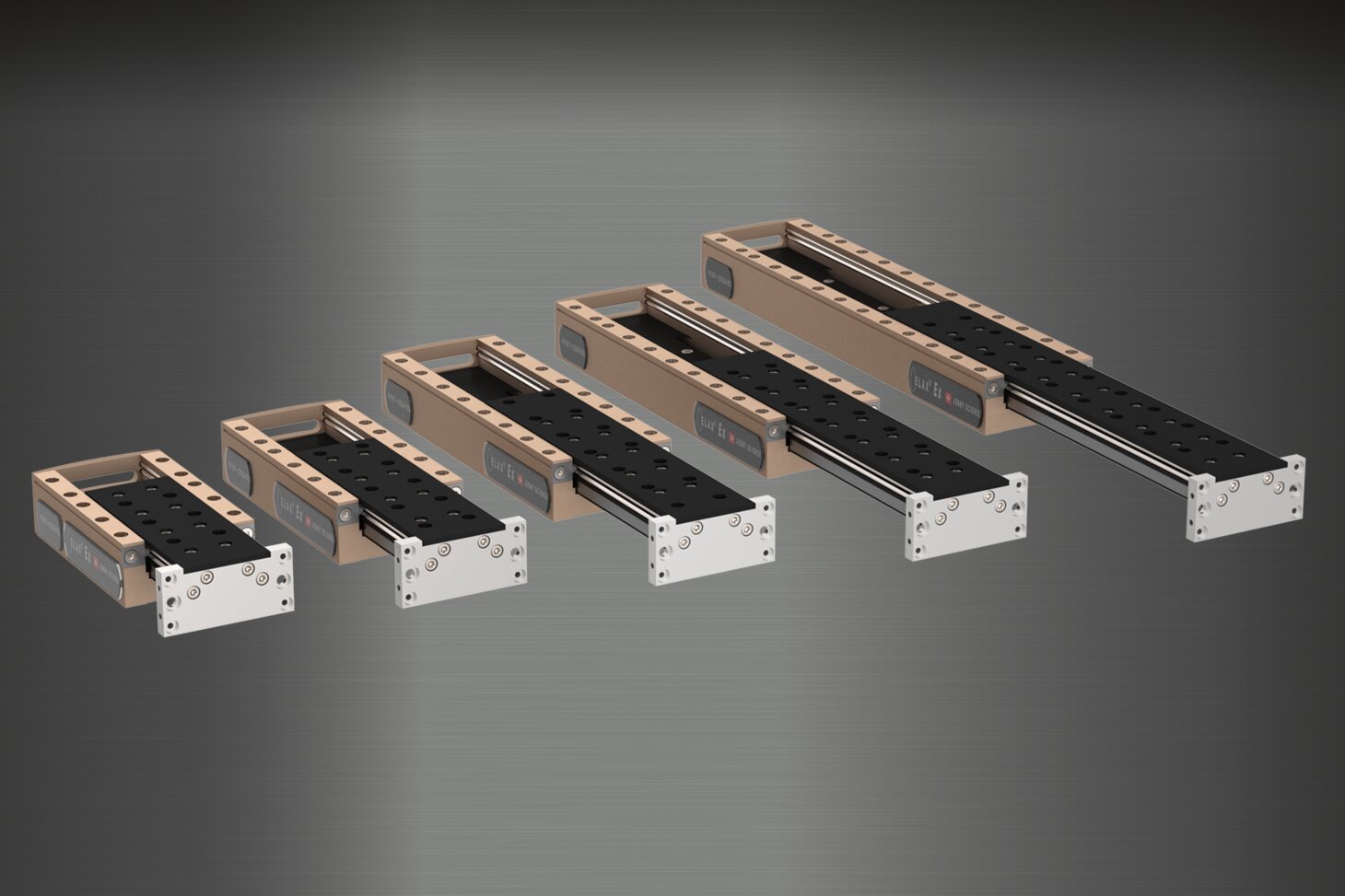

| ELAX® | Stroke [mm] (in) |
L Install. [mm] (in) |
Weight Slider/total [g] (lbs) |
Art. No. |
| Ex 30F201) | 30 (1.18) | 109/139 (4.29/5.47) | 195/560 (0.42/1.23) | 116.00.00 |
| Ex 50F201) | 50 (1.96) | 129/179 (5.08/7.05) | 265/630 (0.58/1.38) | 116.01.00 |
| Ex 80F201) | 80 (3.14) | 177/257 (6.96/10.12) | 340/780 (0.74/1.71) | 116.02.00 |
| Ex 110F201) | 110 (4.33) | 207/317 (8.15/12.48) | 415/945 (0.91/2.08) | 116.03.00 |
| Ex 150F20 | 150 (5.90) | 267/417 (10.51/16.42) | 490/1'110 (1.08/2.44) | 116.04.00 |
1) Available with weight compensation up to 2kg
